Callback Connection
Previous  Next


The Callback Connection feature allows you to initiate connection establishment from USBDeviceShare Server. This feature is useful in scenarios where the server is behind a NAT or firewall and cannot accept incoming connections. In Callback connection mode the client waits for the connection while the server initiates the connection.


graphic

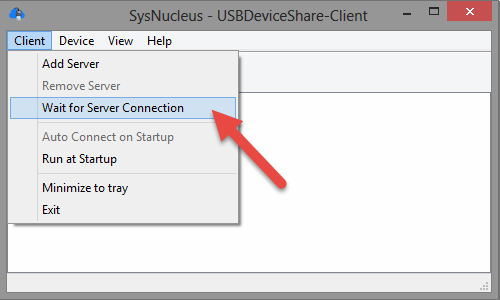

In client UI, select the 'Wait for Server Connection' option from the Client menu as shown above. In the resulting window (shown below) provide the port number on which the client should wait and click the OK button. The client will now wait for connection request from server.


 graphic

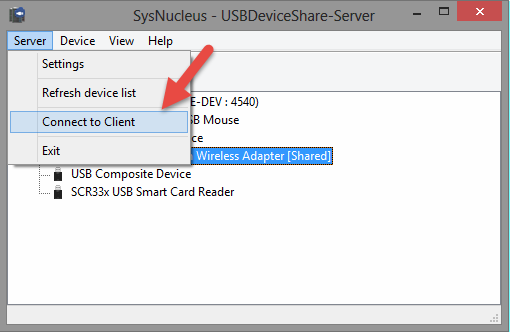

In server UI, select the 'Connect to Client' option from the 'Server' menu as shown below.


graphic

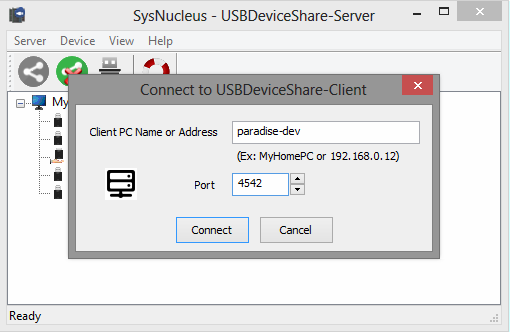

In the resulting window, provide the client name (or IP address) and port number.


 graphic


Server will now connect to the client which is waiting for incoming connections. Once the connection has been successfully established the shared USB devices at the server will be displayed in the client UI.
